System A-Edge

Overview

A compartmentalized & pressure-equalized Rainscreen system that offers a ‘floating-edge’ detail at the perimeter of the panels.  System A-Edge is able to support 3mm aluminum, 1/8″ stainless steel, 4mm aluminum composite material (ACM), or 5.6mm sintered stone.  With all of the performance features of our System A, this pressure-equalized Rainscreen system expands our offering to Architects who desire this unique design feature.

Aluminum
Aluminum Composite
Stainless Steel
Sintered Stone

01 / 01
KPS Model System System A Edge
KPS Model System System A Edge
KPS System A Edge Ki Restaurant
KPS System A Edge Ki Restaurant
KPS System A Edge US Bank Tower Plaza Exterior
KPS System A Edge US Bank Tower Plaza Exterior
KPS System A Edge US Bank Tower
KPS System A Edge US Bank Tower
KPS System A Edge Van Aqua Donor Wall
KPS System A Edge Van Aqua Donor Wall

Features

  • Compartmentalized and pressure-equalized Rainscreen
  • Engineered for high rise wall application
  • Free-floating attachment system
  • Concealed thru-wall flashing at horizontal reveals
  • Long-span structural perimeter frame

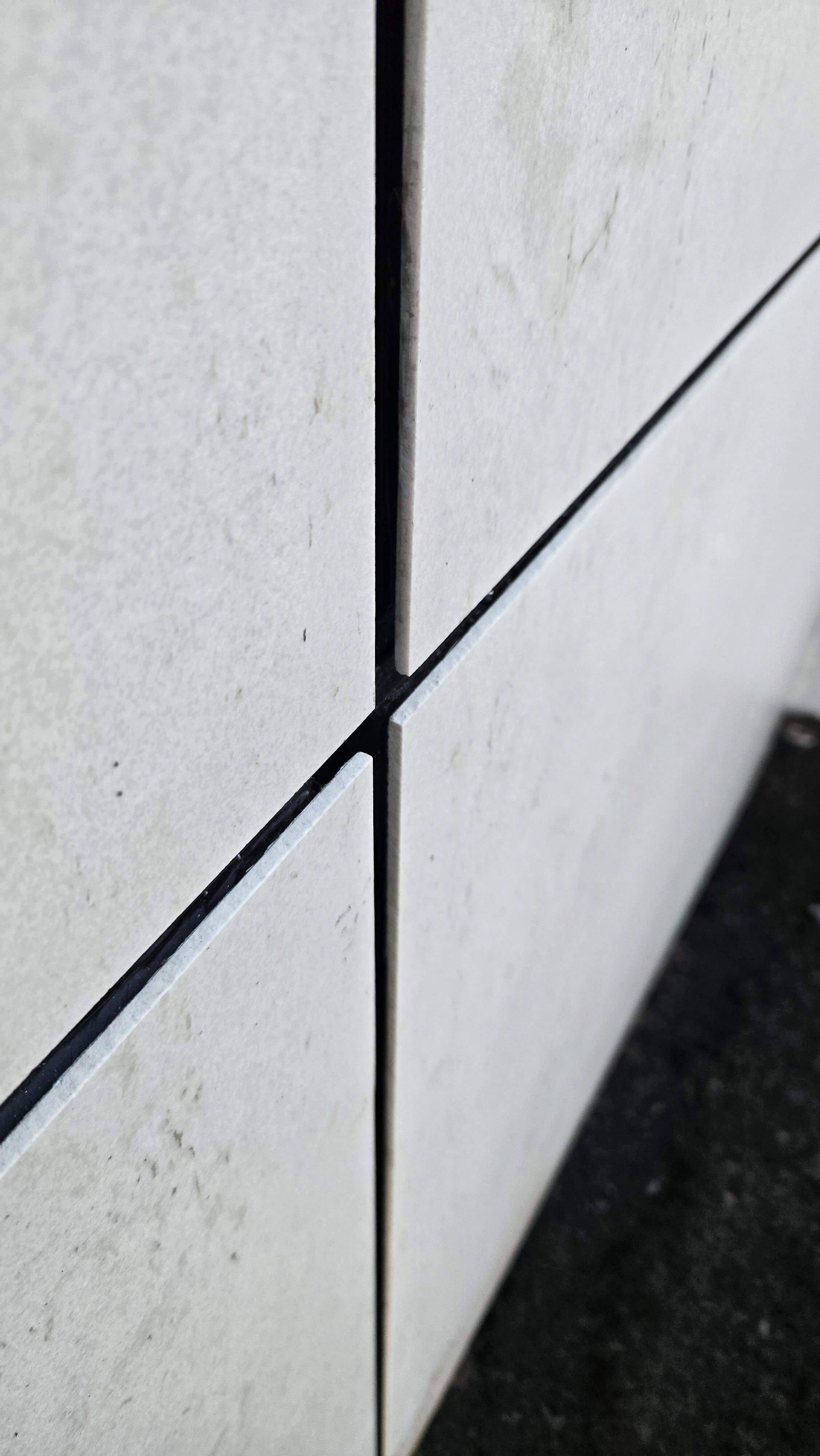

  • Floating panel edge detail with no exposed fasteners
